Fume Cupboards

A wide range of sizes and configurations are available including both fixed and mobile fume cupboards. In addition to the standard range we are able to offer bespoke extraction solutions.

The INT1000MR fume cupboards comply with the requirements and recommendations of Design Note 29, Building Bulletin 88 and CLEAPSS.

integrated fixed school fume cupboard

Dimensions

External Width – 1000mm
External Depth – 715mm
External Height – 1950mm
Internal Width – 900mm
Internal Depth – 500mm
Internal Height – 950mm
Viewing Opening Height – 750mm
Maximum safe sash opening – 400mm

External Unit

Front profiles formed using 16swg zinc coated mild steel, epoxy powder coated in white. Sides and rear of cabinet fitted with 5mm thick clear toughened safety glass.

WorkBase

16mm thick solid laminate sheet, dished on all four sides to contain spillage.

Services

  • 1 x Circular Vulcathene Drip Cup with bottle trap.
  • 1 x Cold Water
  • 1 x Natural Gas
  • 1 x Light Switch
  • 1 x 13A single switch sockets c/w neon indicators
  • 1 x RCD safety breaker
  • Control / Alarm Panel
  • Fan Start & Stop buttons
  • Fan Run Indicator
  • Lights On / Off buttons
  • Lights On Indicator
  • Airflow Fail Indicator
  • Low Air Mute Button
  • Airflow Safe Indicator
  • Hours Run Meter
  • Fan & Filtration

Extract volume is designed to achieve a minimum face velocity of 0.3m/s with sash opening of 400mm.

school ducted fume cupboard

Looking for a new fume cupboard?

We can supply both standard and bespoke solutions

Re-circulation Fume Cupboard

A wide range of sizes and configurations are available including both fixed and mobile fume cupboards. In addition to the standard range we are able to offer bespoke extraction solutions.

The INT1000MR fume cupboards comply with the requirements and recommendations of Design Note 29, Building Bulletin 88 and CLEAPSS

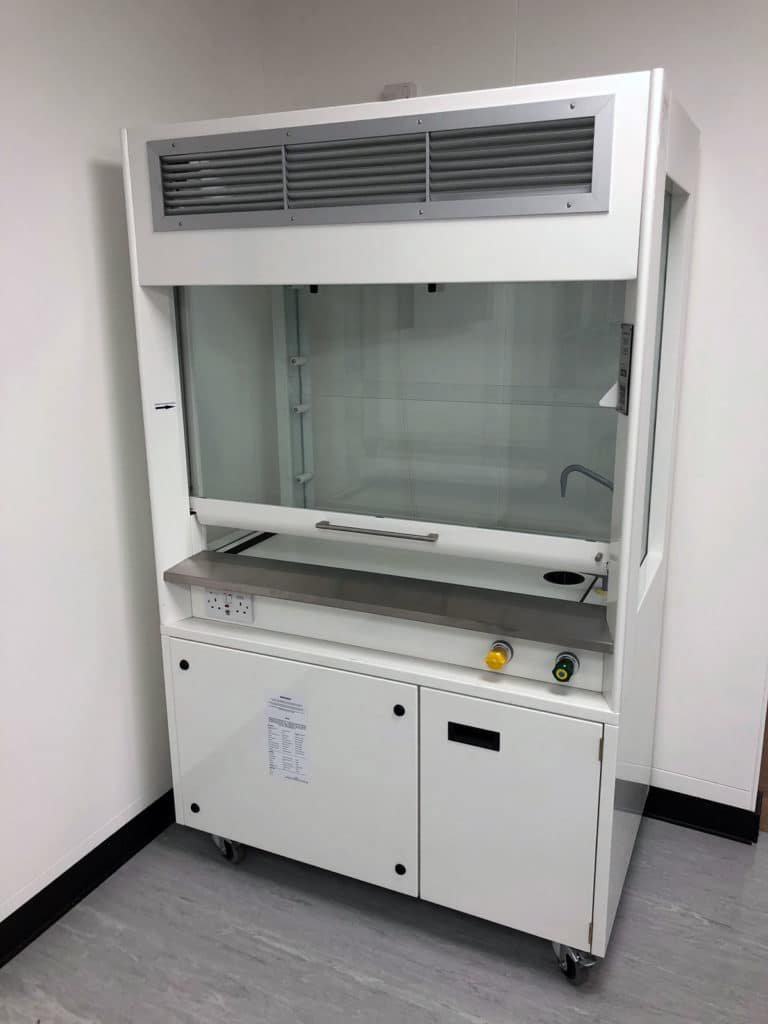

school mobile fume cupboard re-circulation

Dimensions

External Width – 1000mm
External Depth – 715mm
External Height – 1950mm
Internal Width – 900mm
Internal Depth – 500mm
Internal Height – 950mm
Viewing Opening Height – 750mm
Maximum safe sash opening – 400mm

External Unit

Front profiles formed using 16swg zinc coated mild steel, epoxy powder coated in white. Sides and rear of cabinet fitted with 5mm thick clear toughened safety glass. 4 swivel castors (front castors lockable). Recessed facia rail to allow unit to be moved through standard doorways.

WorkBase

16mm thick solid laminate sheet, dished on all four sides to contain spillage. Rear of worktop is fitted with a perforated PVC mesh grill for airflow and to prevent ingress of debris into fan and filter area.

14KG Activated carbon filter set and integral fan unit which will re-circulate air back into the laboratory through the base of the cabinet.

Services

  • 1 x Circular Vulcathene Drip Cup with bottle trap.
  • 1 x Cold Water
  • 1 x Natural Gas
  • 1 x Light Switch
  • 2 x 13A single switch sockets c/w neon indicators
  • 1 x RCD safety breaker
  • Control / Alarm Panel
  • Fan Start & Stop buttons
  • Fan Run Indicator
  • Lights On / Off buttons
  • Lights On Indicator
  • Airflow Fail Indicator
  • Low Air Mute Button
  • Airflow Safe Indicator
  • Hours Run Meter
  • Fan & Filtration
